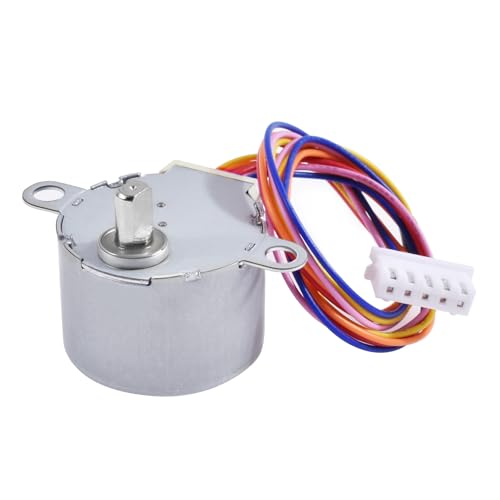

24BYJ48 DC 12V Stepper Motor, 4 Phase 5 Wire | Micro Reducer Stepper Motor, Speed Reduction Stepping Motor, Replacement Fan Motor for Wireless Camera, Air Conditioner, DIY - size: 1pcs 24BYJ48

About this item

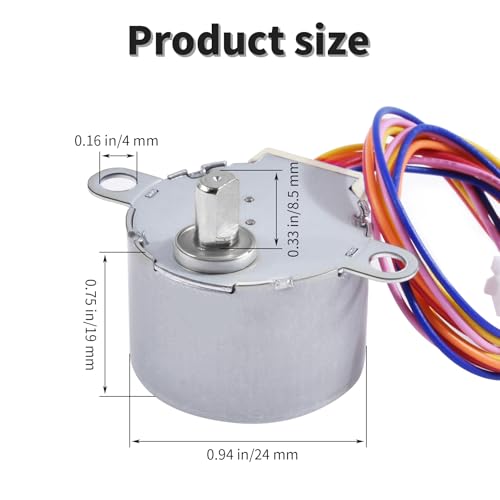

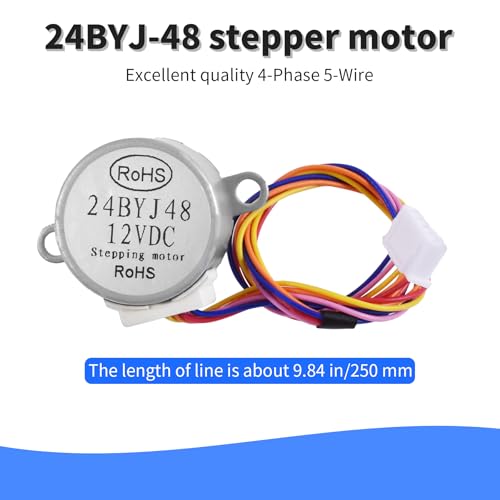

• 【Dimensions】Stepping motor diameter: 0.94 in/24 mm; Motor height: 0.75 in/19 mm; Shaft diameter: 0.2 in/5 mm; Shaft height: 0.33 in/8.5 mm; Mounting hole distance: 1.22 in/31 mm; Mounting hole diameter: 0.16 in/4 mm; Wire length: 9.84 in/250 mm.
• 【Technical Parameters】Model: 24BYJ48; Voltage: DC 12V; Step angle: 5.625°/64; Reduction ratio: 1/64; Weight: 30g. The package includes 1 pcs stepper motor.

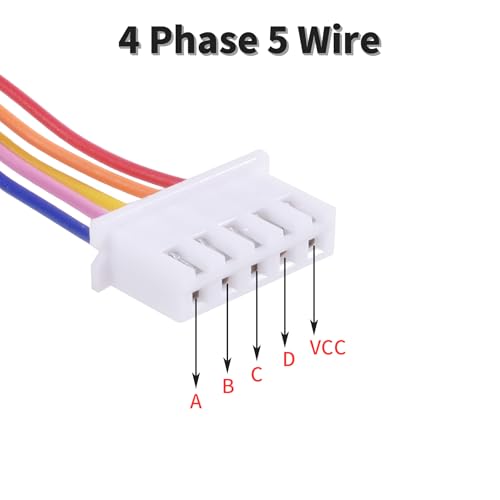

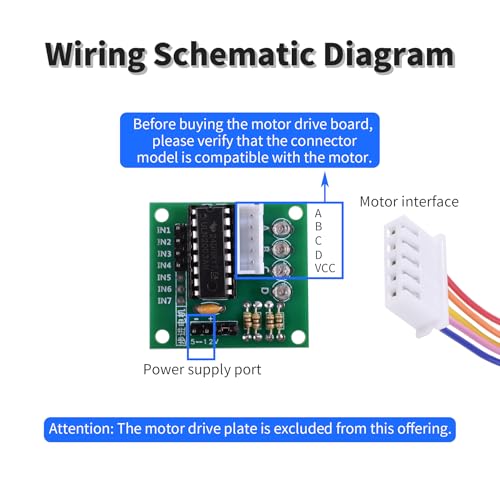

• 【4-phase 5-wire Design】This mini stepper motor features a 5-wire 4-phase design, which can be driven by a common chip and connected for use in two phases, providing flexibility for different project requirements. The motor adopts a standard interface and can be directly plugged in and out during use, which is convenient and quick.
• 【High Quality】The reduction stepper motor is made of high-quality materials, with high precision, low vibration and noise, stable and reliable performance, and a long service life. It is an excellent substitute for replacing damaged components.
• 【Wide Application】This micro reducer stepping motor is highly suitable for various DIY projects, air conditioners, robots, wireless cameras, monitors, fans, warm air blowers, electric heaters, combustion furnaces, microwave ovens, lighting, and various electrical appliances. It is an ideal choice for both enthusiasts and professionals.

Overview

• Brand: FOCMKEAS
• Item Weight: 0.04 kg
• Number of Items: 1
• Manufacturer: FOCMKEAS
